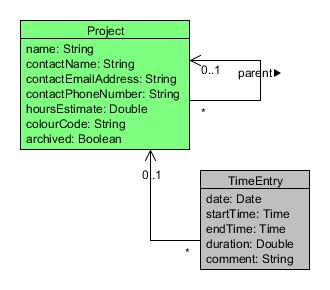

| TAM Product Family | |
| Model | standard model: UXF, JPG, PDF |
| variability model: UXF, JPG, PDF | |
| Umple | tam_product_family.ump |
| VML | tam_product_family.vml |
| Thesis | System Generation for TAM Product Lines |
| Presentation | PPT, PPTX, PDF |
| TAM Combined Examples | |
| TAM + Base case | product_line_invoke_base_case.vml |
| TAM + Klok | product_line_invoke_klok.vml |
| TAM + Leia | product_line_invoke_leia.vml |
| TAM + Anuko Time Tracker | product_line_invoke_anuko.vml |
| TAM + TimeTrex | product_line_invoke_timetrex.vml |
| Base case | |
| Invocation | invoke_base_case.vml |
| Generated TAM system | Umple: invoked_base_case.ump |
| Klok | |
| Class diagram | from UI: UXF, JPG, PDF |
| Use cases | full: UXF, JPG, PDF |
| Clusters | full: UXF, JPG, PDF |
| legend: UXF, JPG, PDF | |

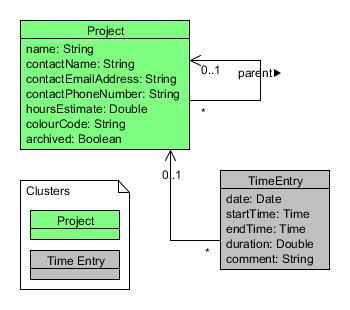

| Clusters with Legend | full: UXF, JPG, PDF |
| Umple code | from UI: klokFromUI.ump |
| Product Family | standard model: UXF, JPG, PDF |
| variability model: UXF, JPG, PDF | |
| Umple code: tam_product_family_klok.ump | |
| VML code: tam_product_family_klok.vml | |
| invocation: invoke_klok.vml | |
| Generated TAM system | Umple: invoked_klok.ump |
| Review | in Globe and Mail |
| Leia 2.0.3 | |

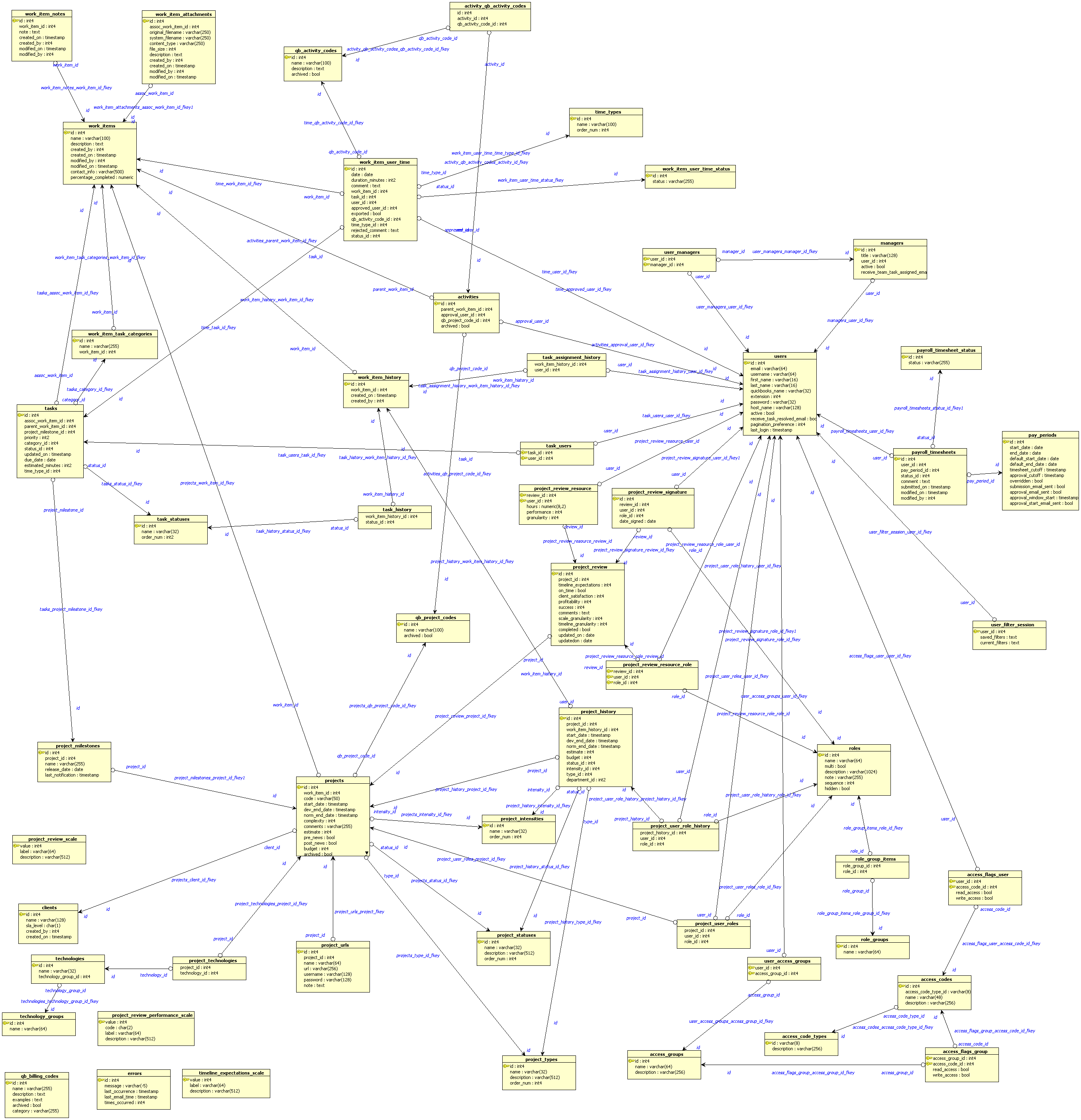

| DB Schema | PNG |

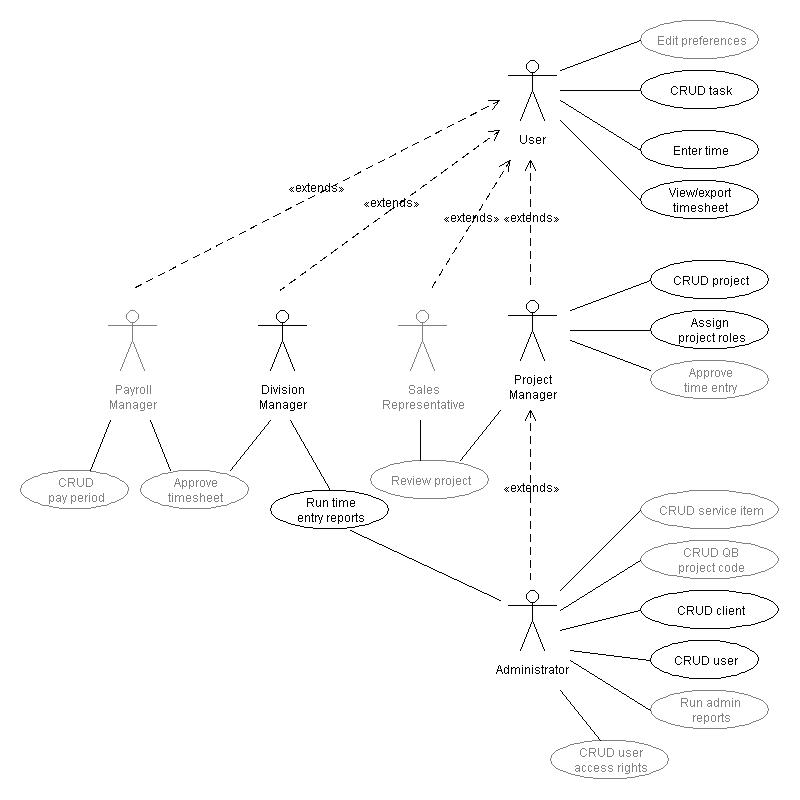

| Use cases | full: UXF, JPG, PDF |

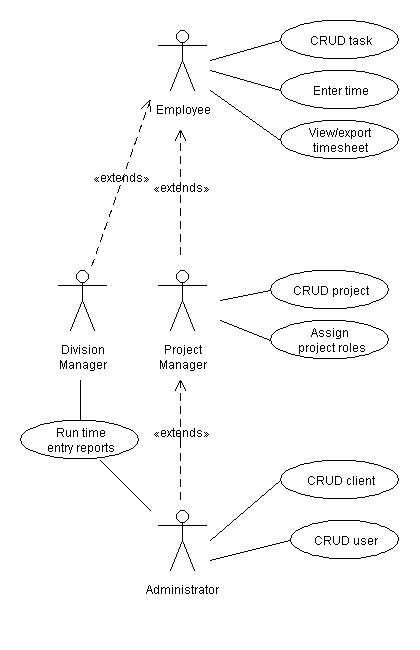

| stripped: UXF, JPG, PDF | |

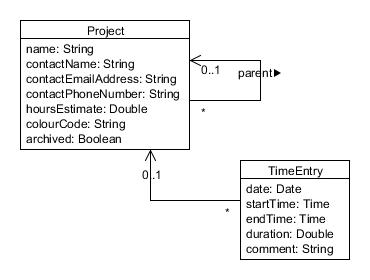

| Class diagram | from UI: JPG |

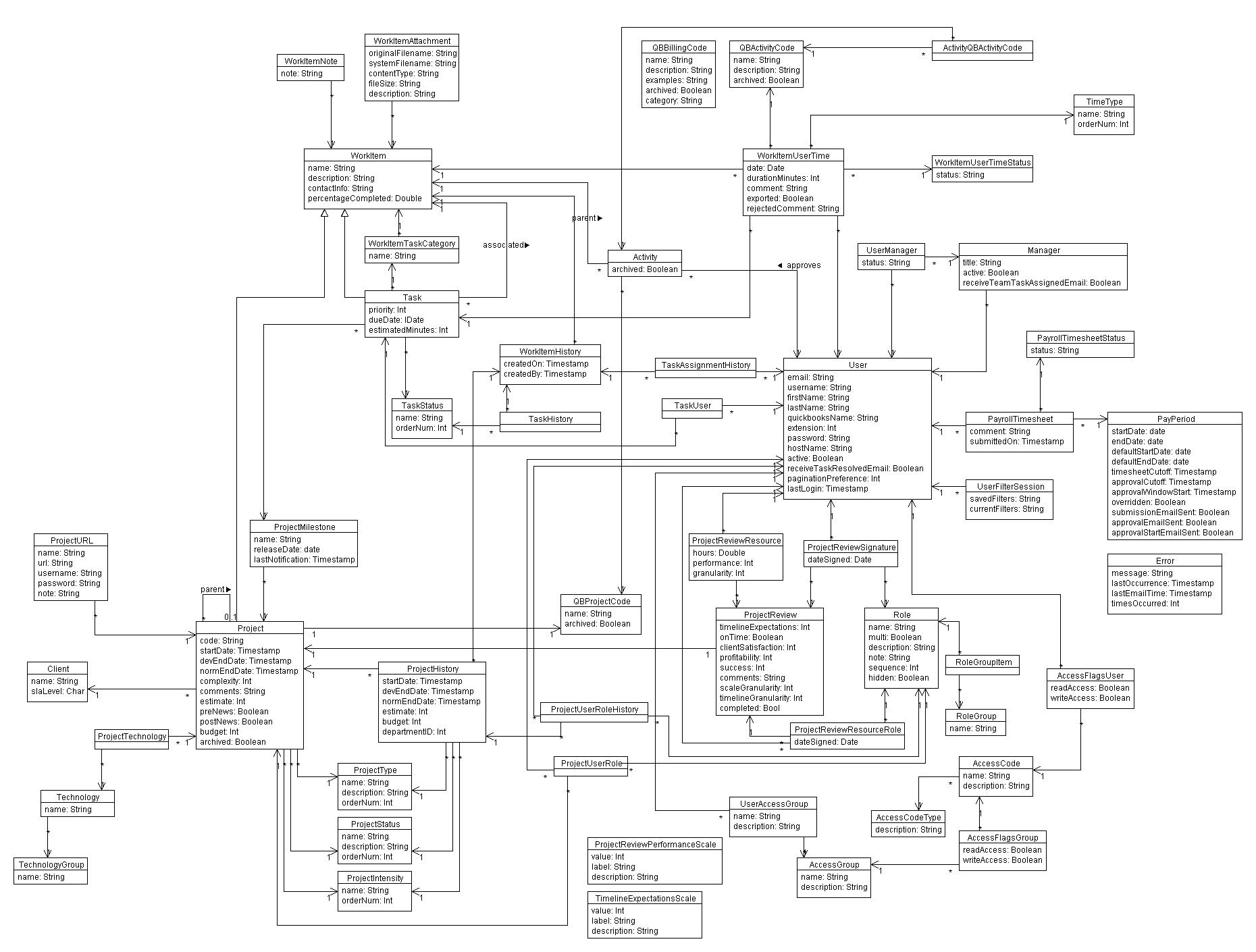

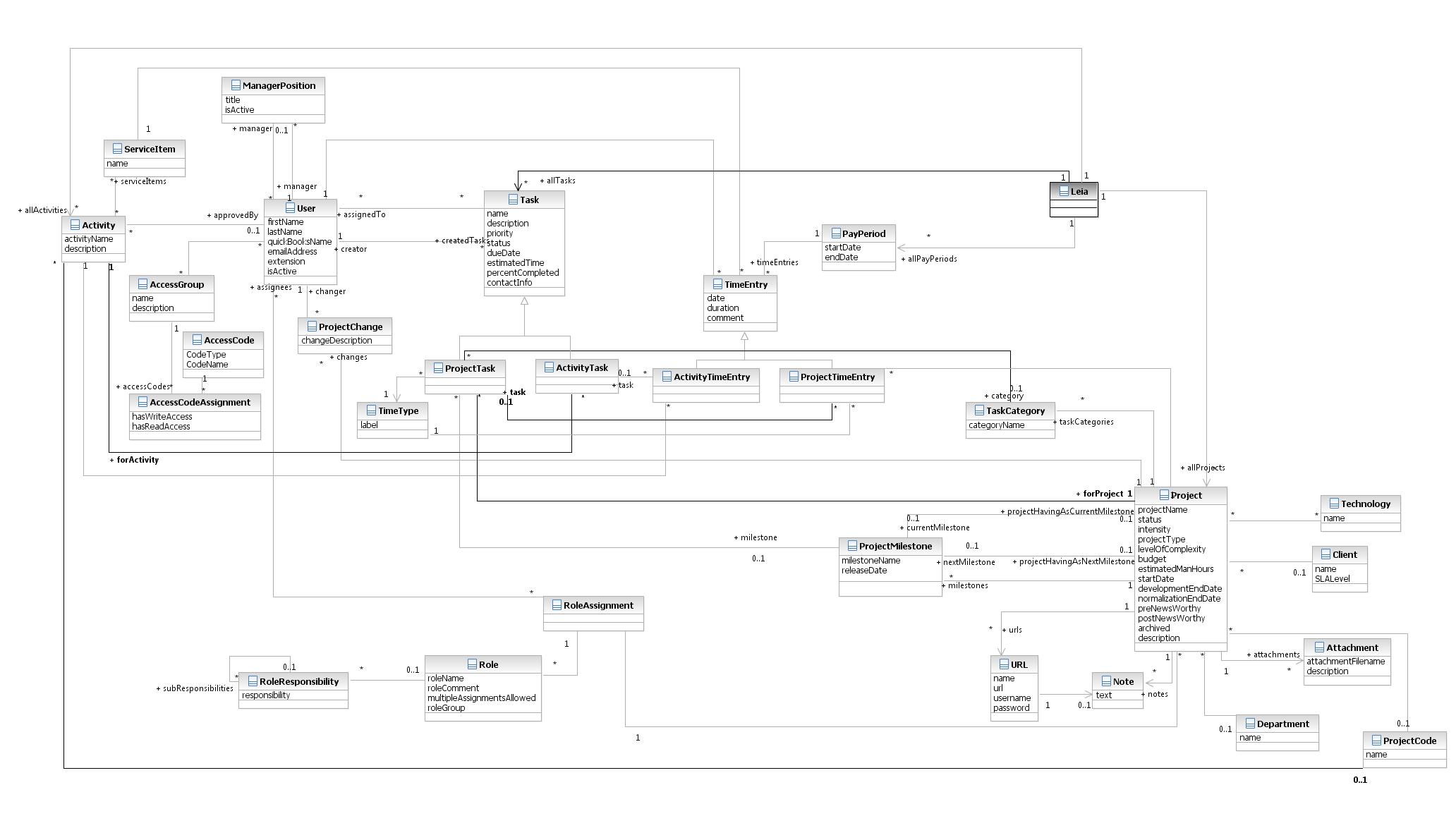

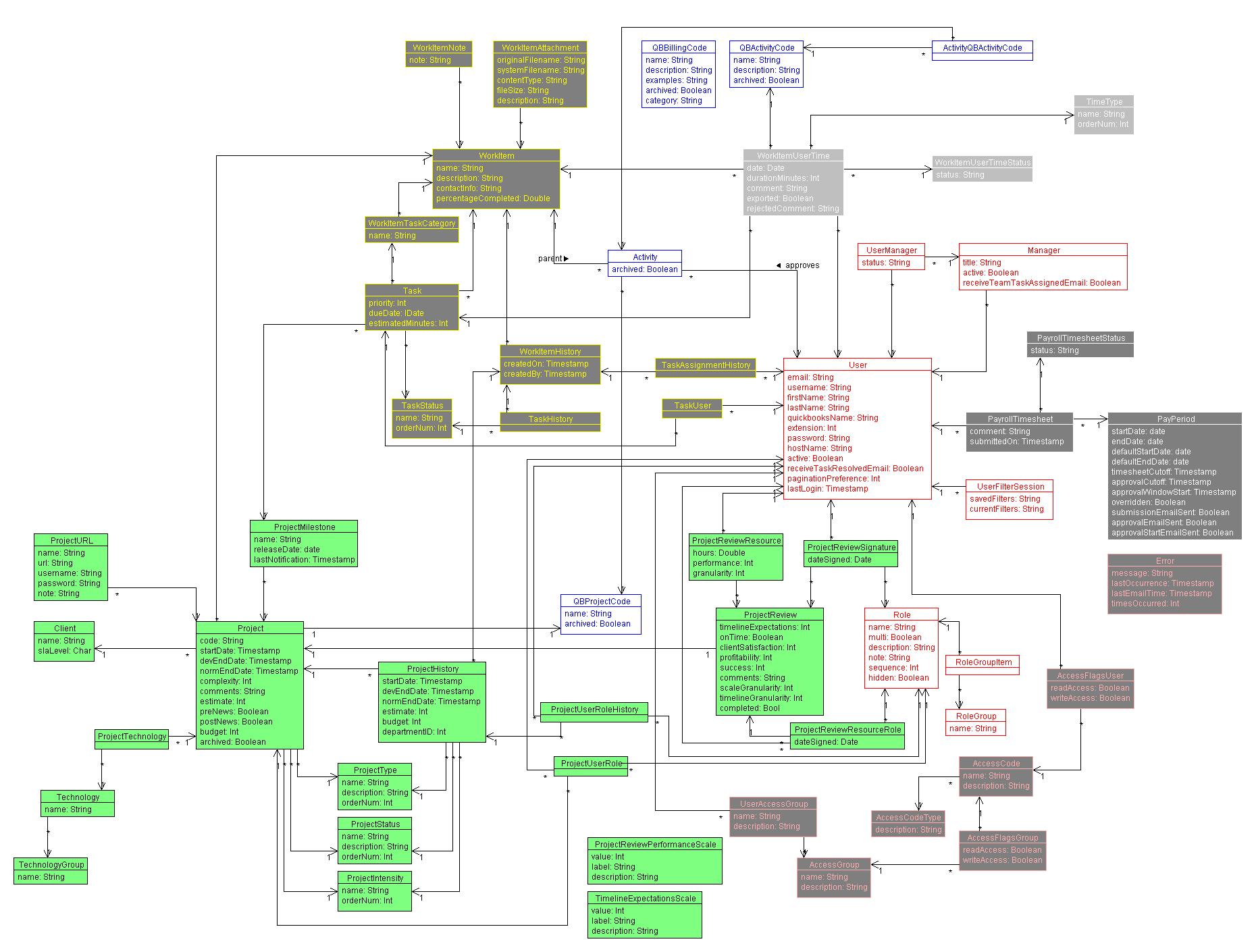

| from ERD: UXF, JPG, PDF | |
| Clusters | full: UXF, JPG, PDF |
| stripped: UXF, JPG, PDF | |

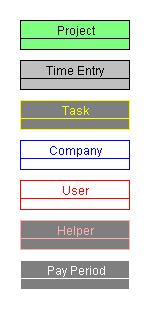

| legend: UXF, JPG, PDF | |

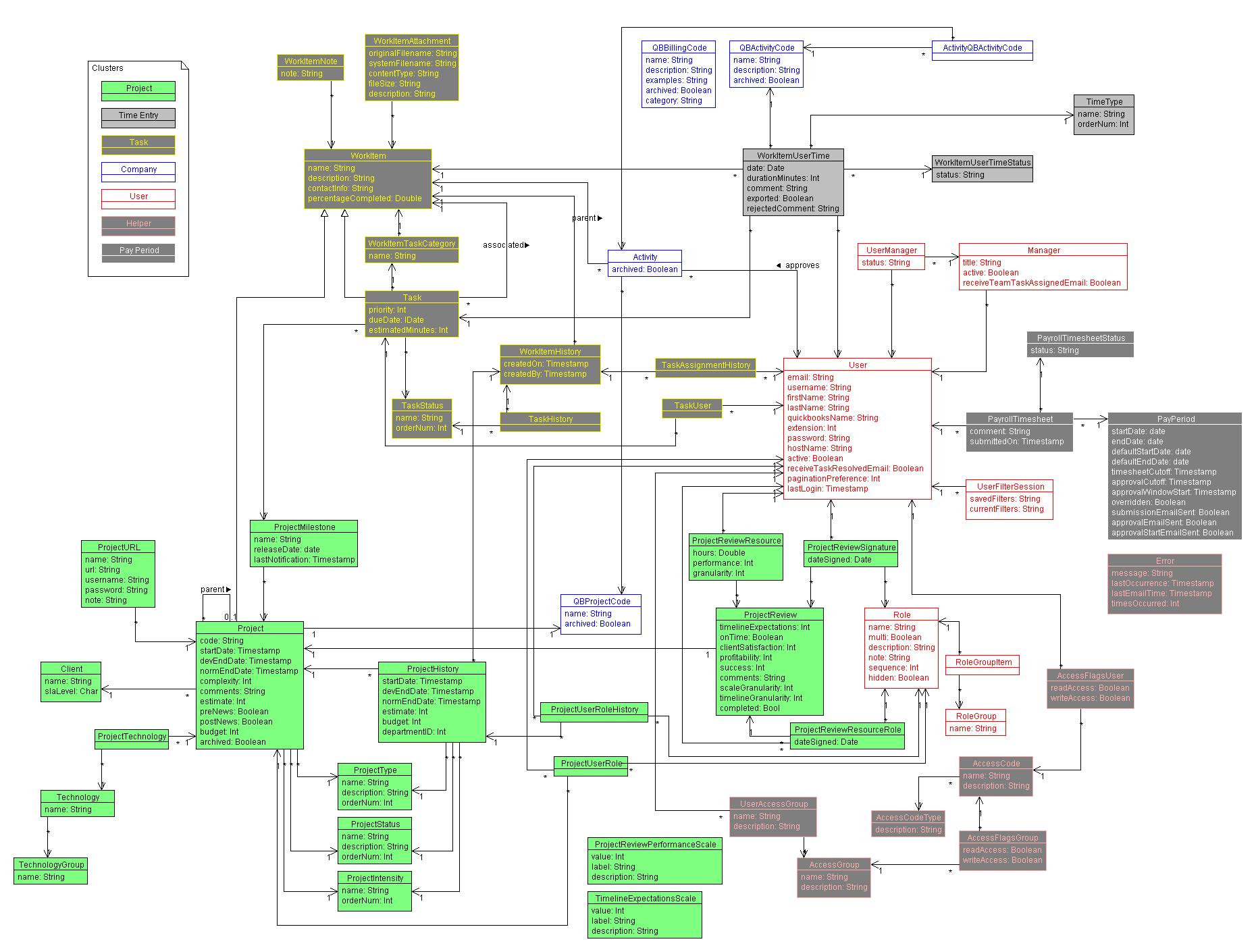

| Clusters with Legend | full: UXF, JPG, PDF |

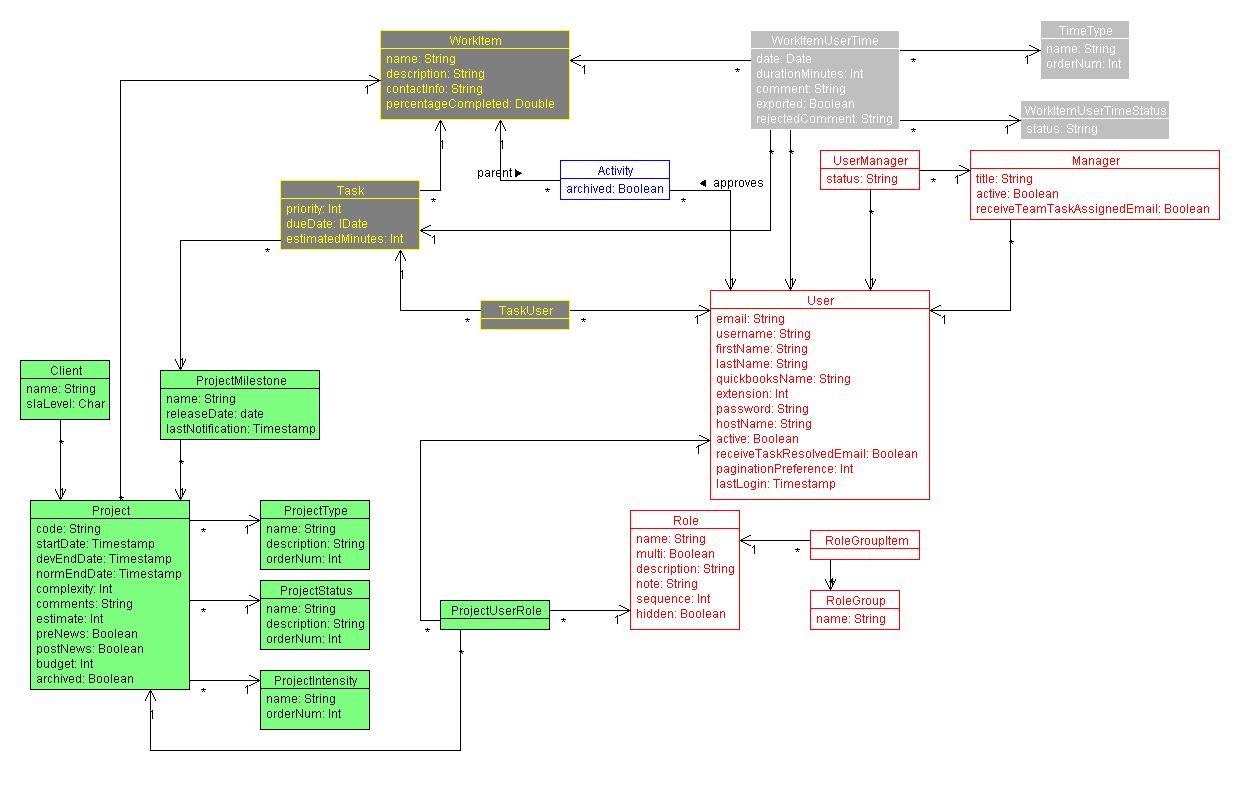

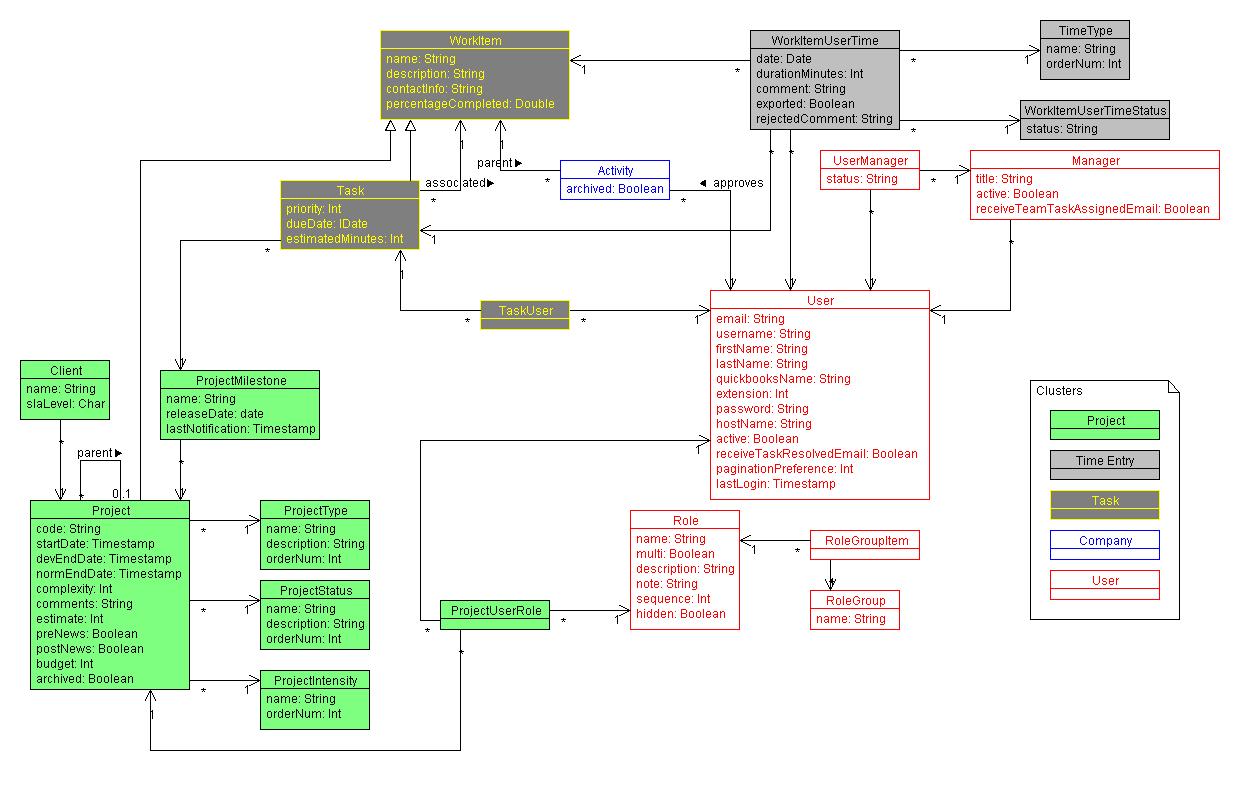

| stripped: UXF, JPG, PDF | |
| Diagram comparison | Class diagram from ERD versus from UI |
| Umple code | from UI: leiaFromUI.ump |
| from ERD: leiaFromERD.ump | |
| stripped: leiaFromERDStrippedClusters.ump | |
| Product Family | standard model: UXF, JPG, PDF |
| variability model: UXF, JPG, PDF | |
| Umple code: tam_product_family_klok_leia.ump | |
| VML code: tam_product_family_klok_leia.vml | |
| invocation: invoke_leia.vml | |
| Generated TAM system | Umple: invoked_leia.ump |
| Anuko Time Tracker | |

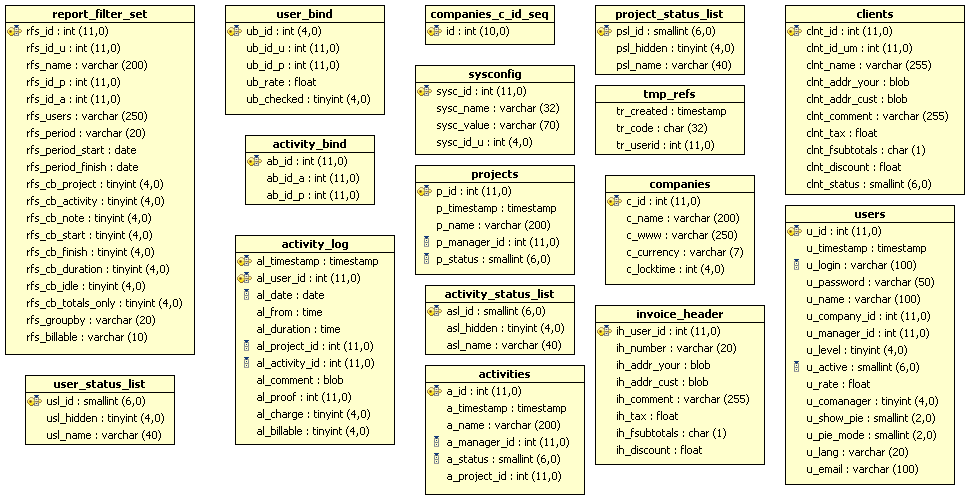

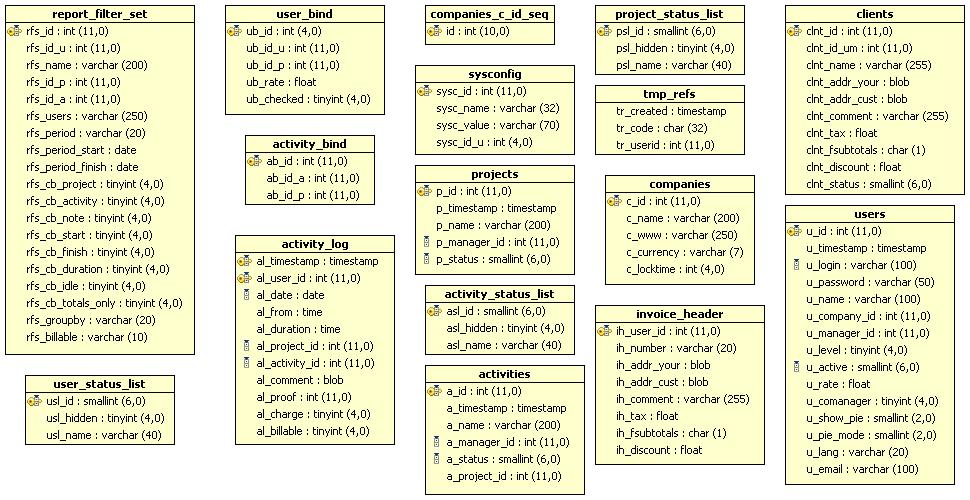

| DB Schema | XED, JPG, PNG |

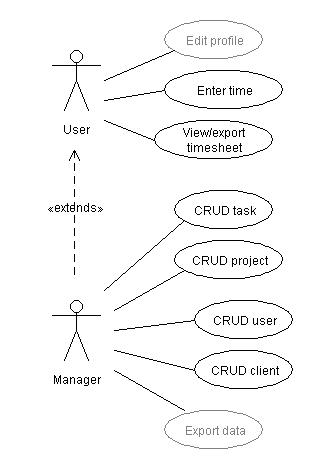

| Use cases | full: UXF, JPG, PDF |

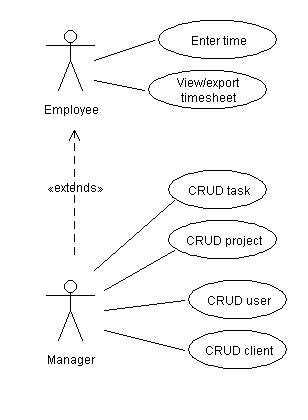

| stripped: UXF, JPG, PDF | |
| Class diagram | from ERD: UXF, JPG, PDF |
| Clusters | full: UXF, JPG, PDF |
| stripped: UXF, JPG, PDF | |
| legend: UXF, JPG, PDF | |

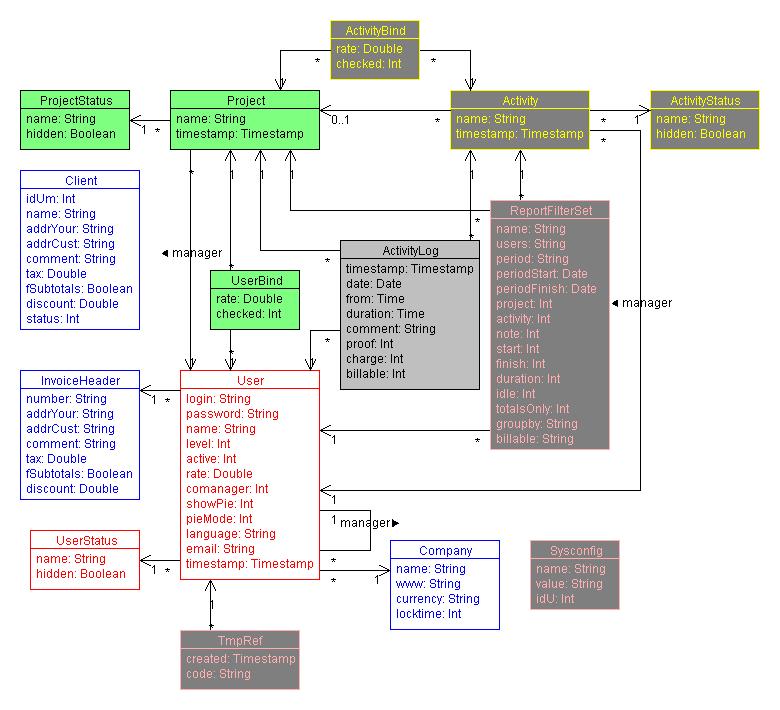

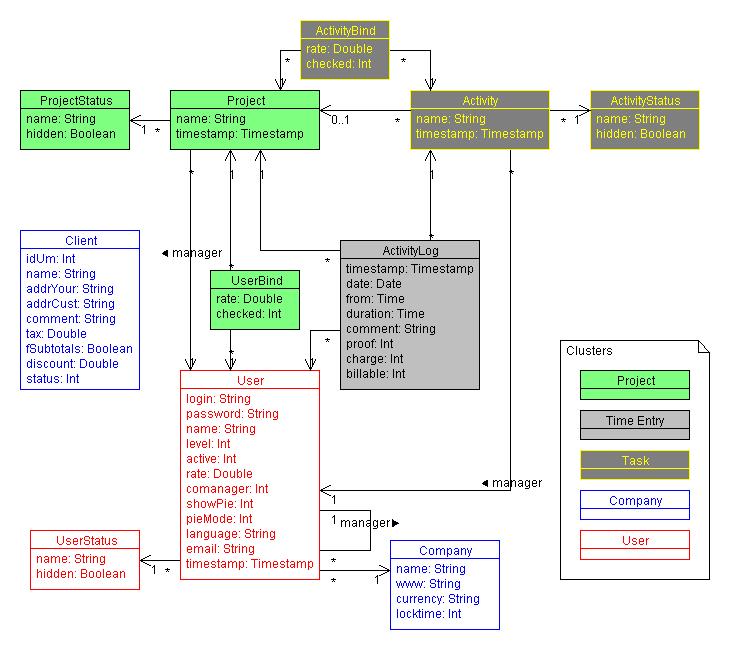

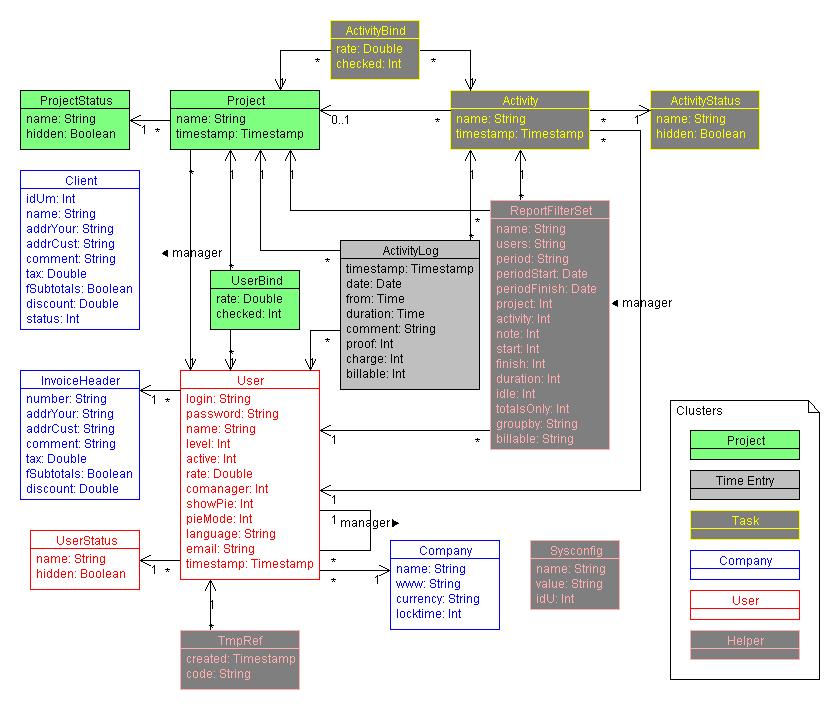

| Clusters with Legend | full: UXF, JPG, PDF |

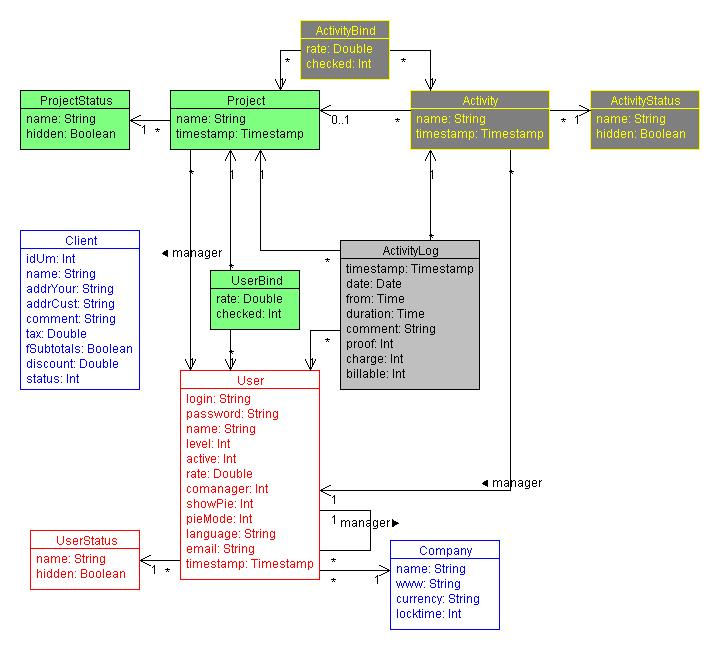

| stripped: UXF, JPG, PDF | |
| Umple code | from ERD: anukoFromERD.ump |
| stripped: anukoFromERDClustersStripped.ump | |
| Product Family | standard model: UXF, JPG, PDF |
| variability model: UXF, JPG, PDF | |
| Umple code: tam_product_family_klok_leia_anuko.ump | |
| VML code: tam_product_family_klok_leia_anuko.vml | |
| invocation: invoke_anuko.vml | |
| Generated TAM system | Umple: invoked_anuko.ump |

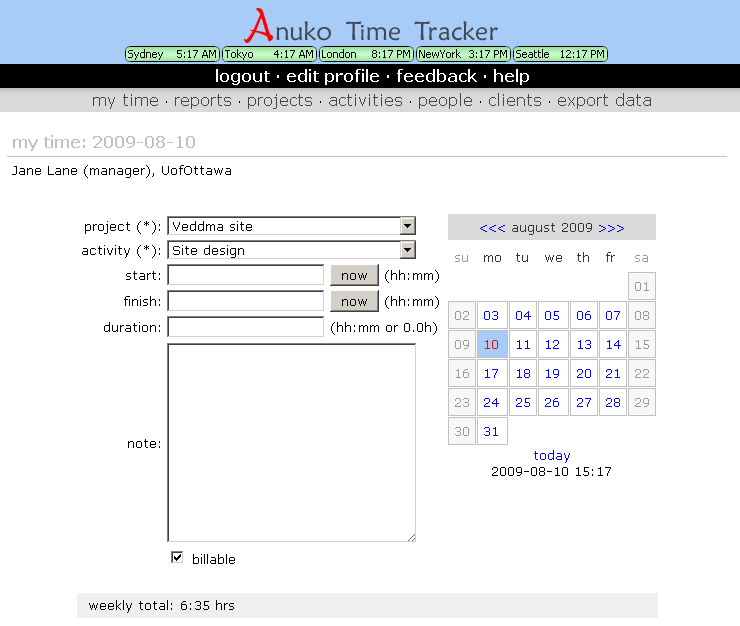

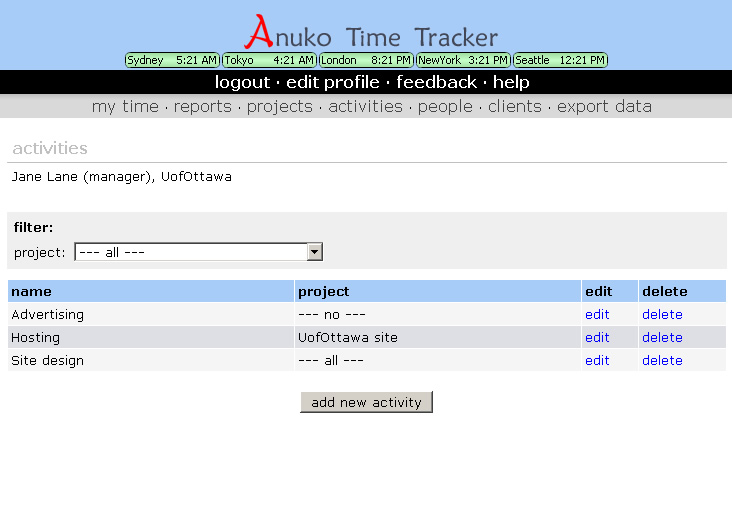

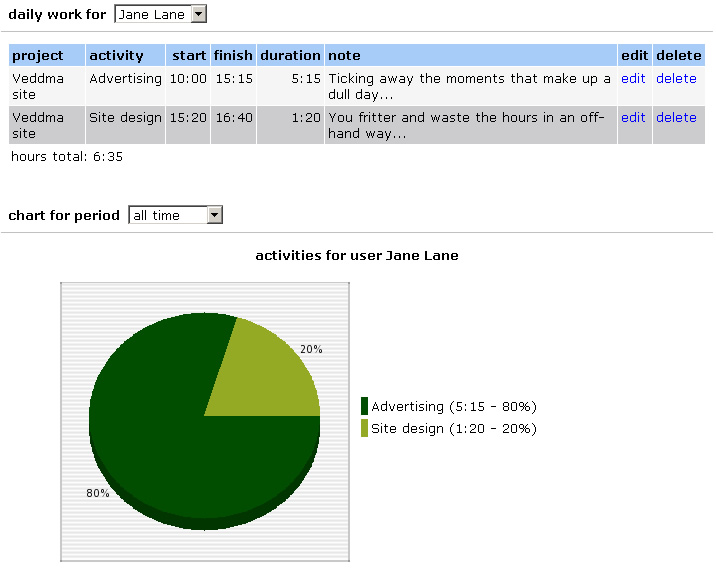

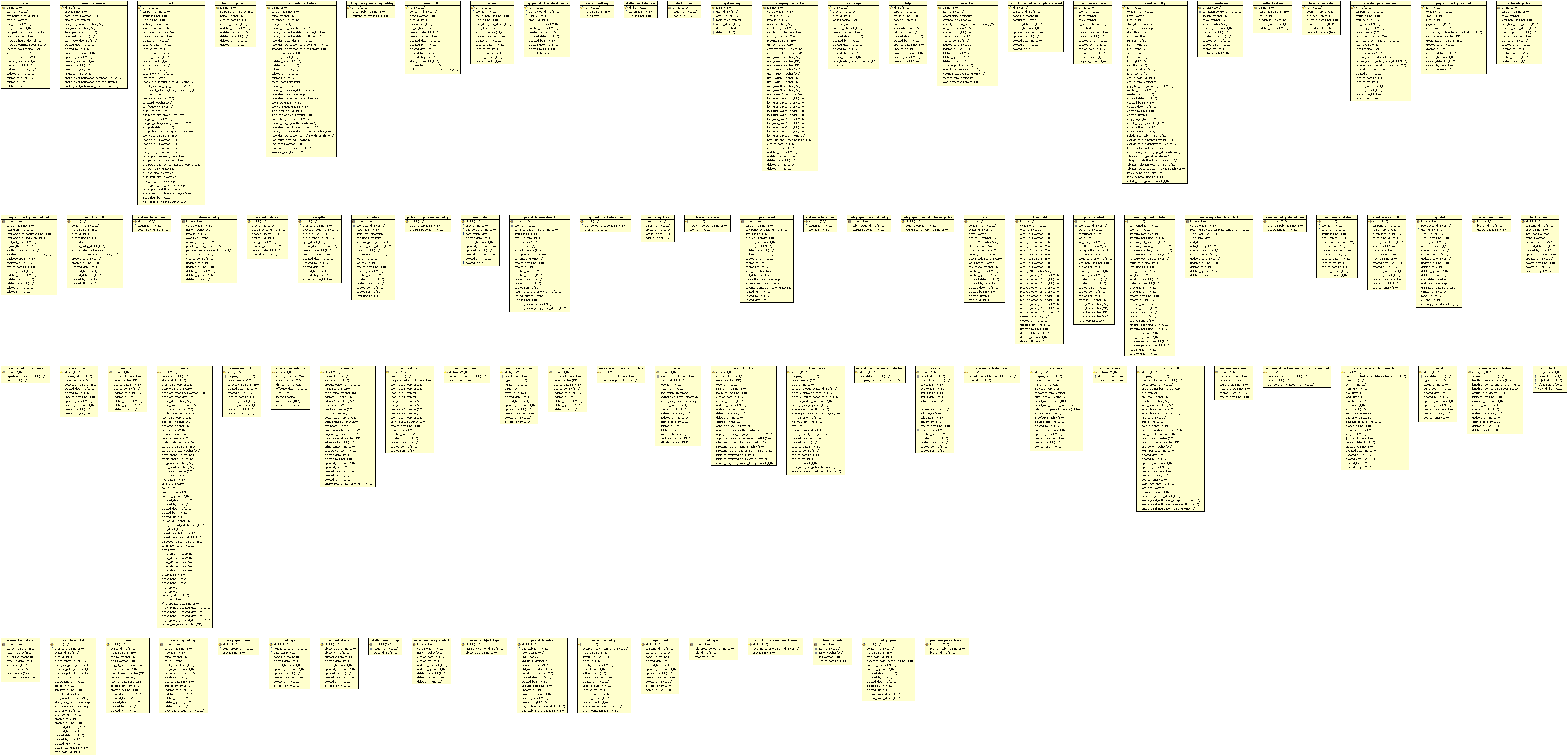

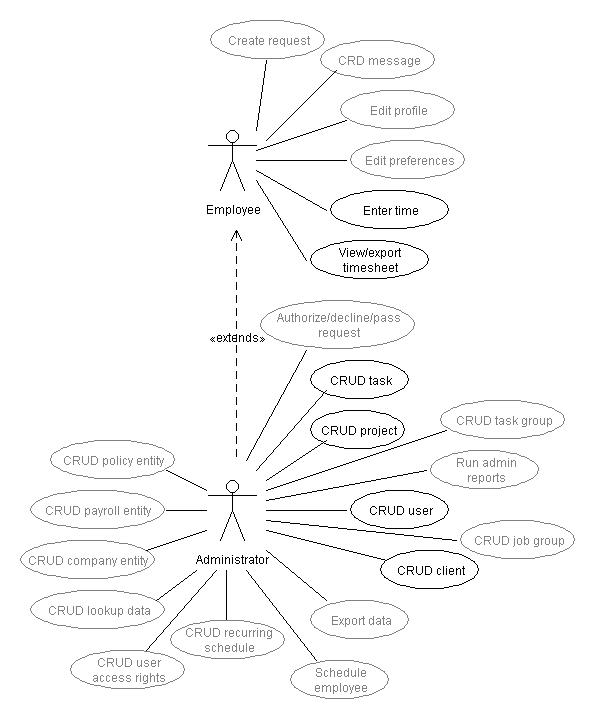

| Screenshots | Time entry, Timesheet view, Activities in projects |
| TimeTrex | |
| DB Schema | XED, PNG |
| Use cases | full: UXF, JPG, PDF |

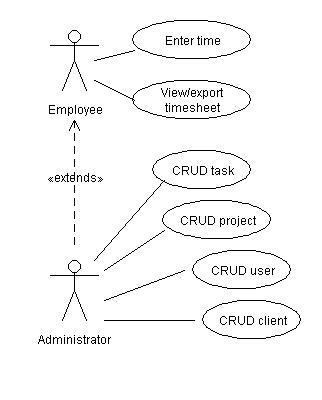

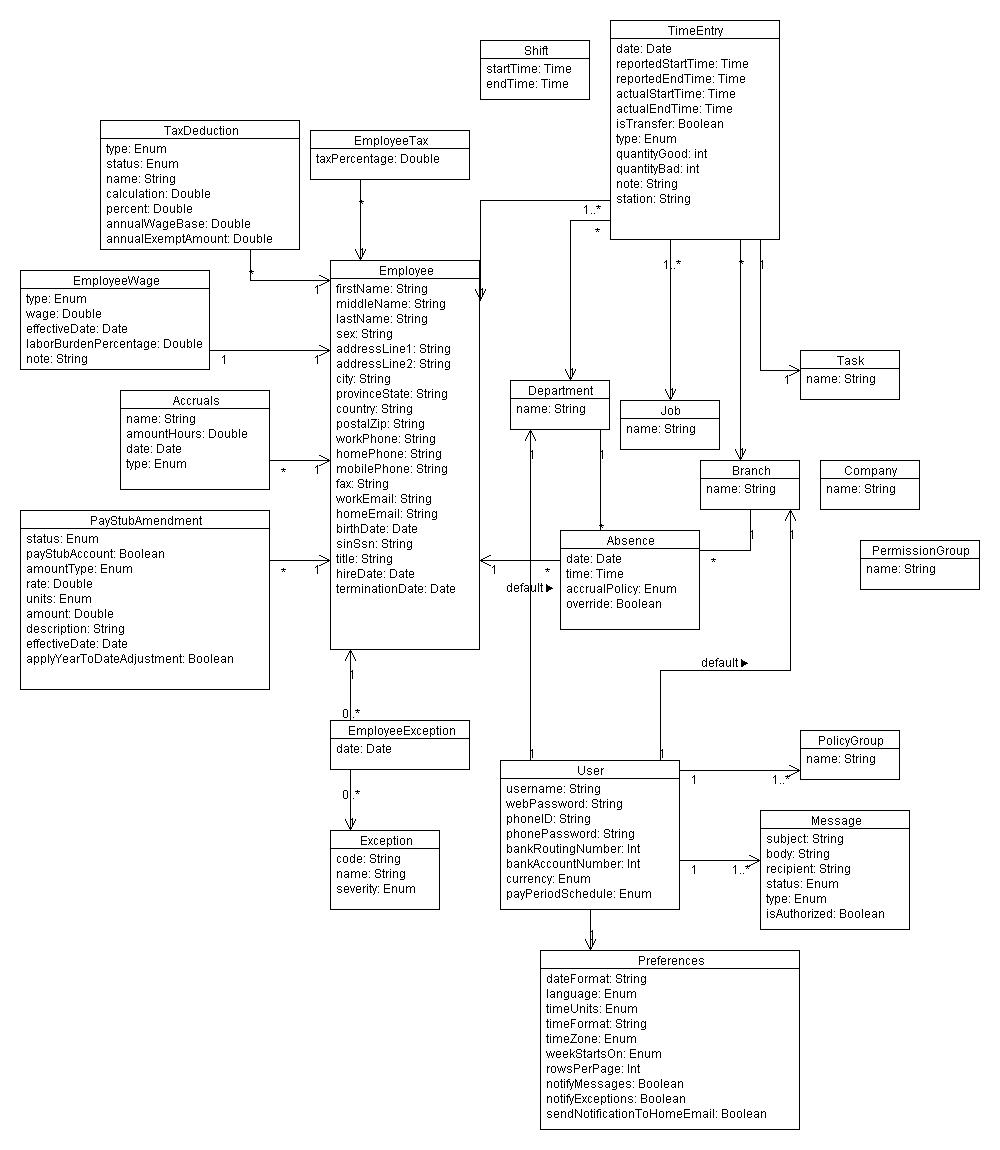

| stripped: UXF, JPG, PDF | |
| Class diagrams | from UI: UXF, JPG, PDF |
| from ERD: UXF, JPG, PDF | |
| Clusters | full: UXF, JPG, PDF |
| stripped: UXF, JPG, PDF | |

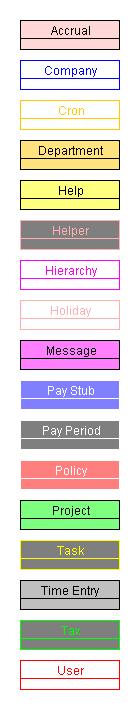

| legend: UXF, JPG, PDF | |

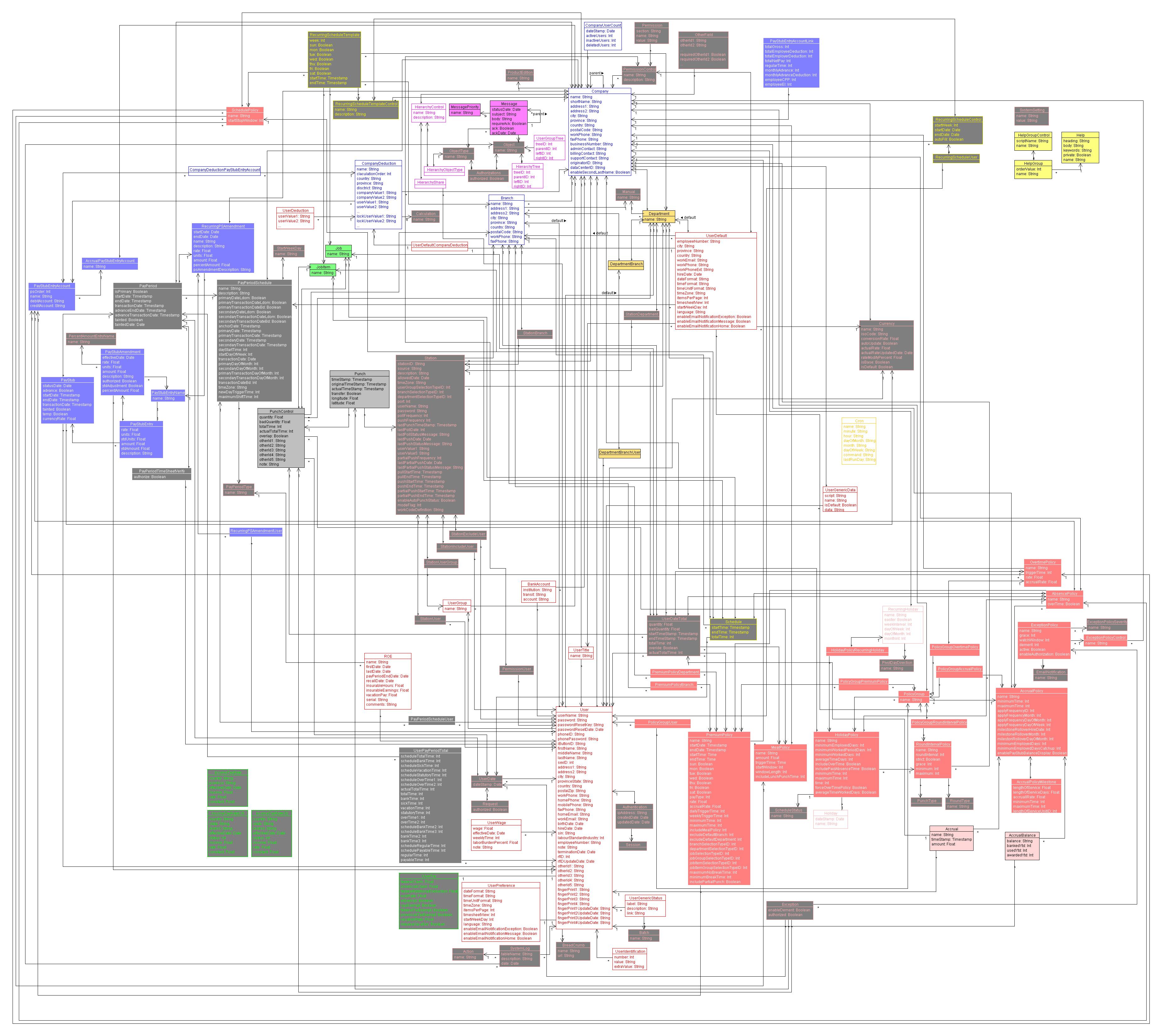

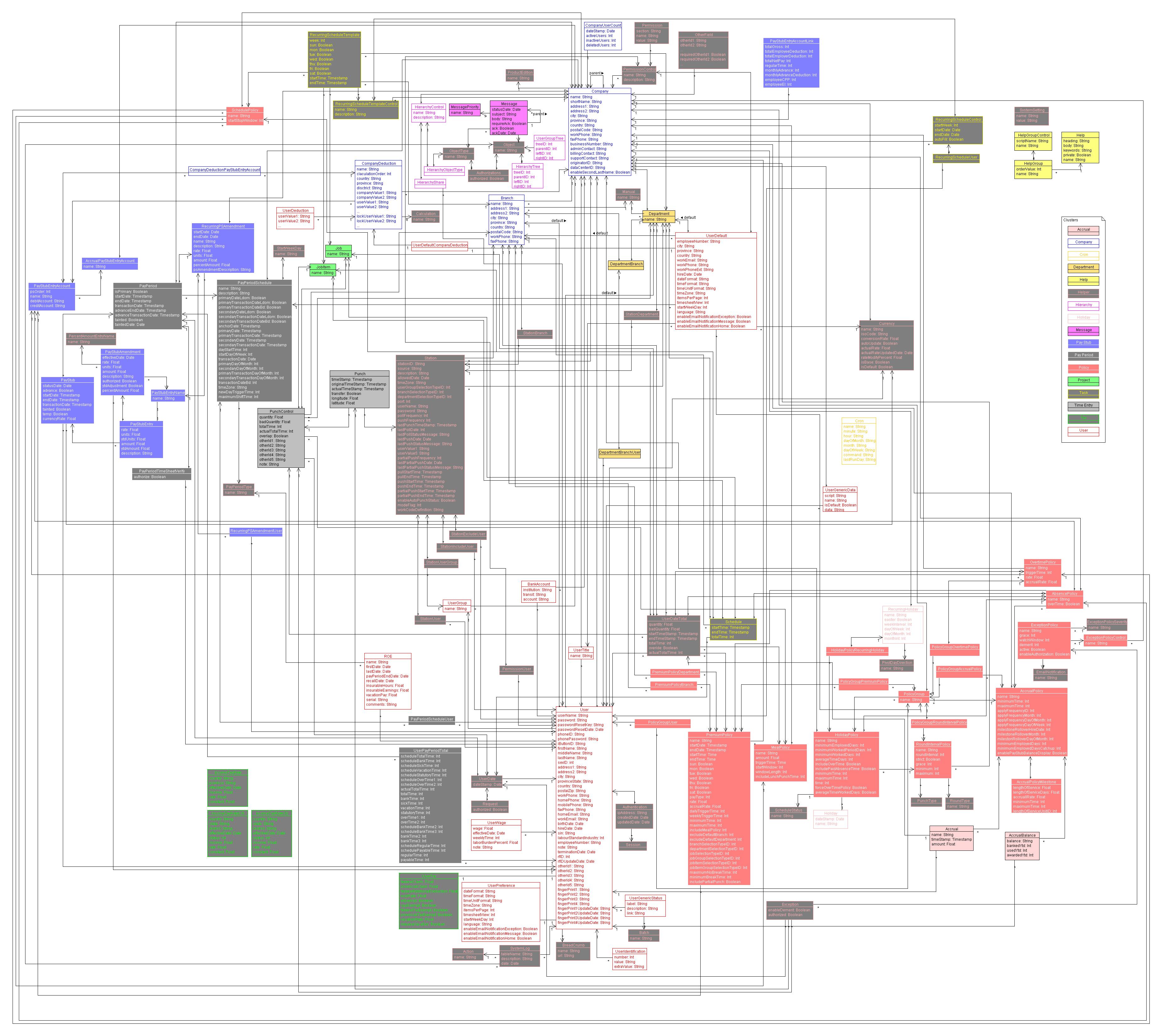

| Clusters with Legend | full: UXF, JPG, PDF |

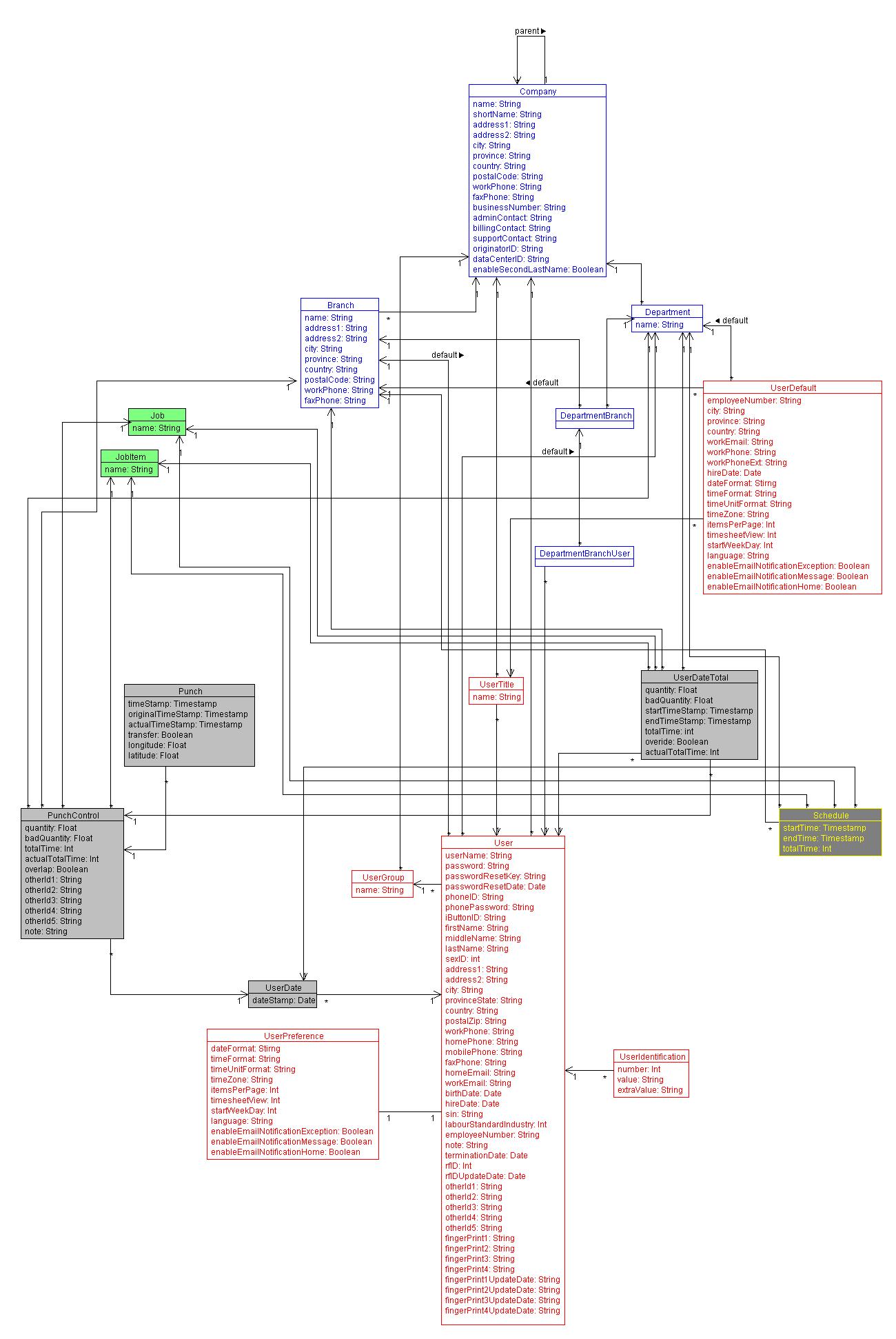

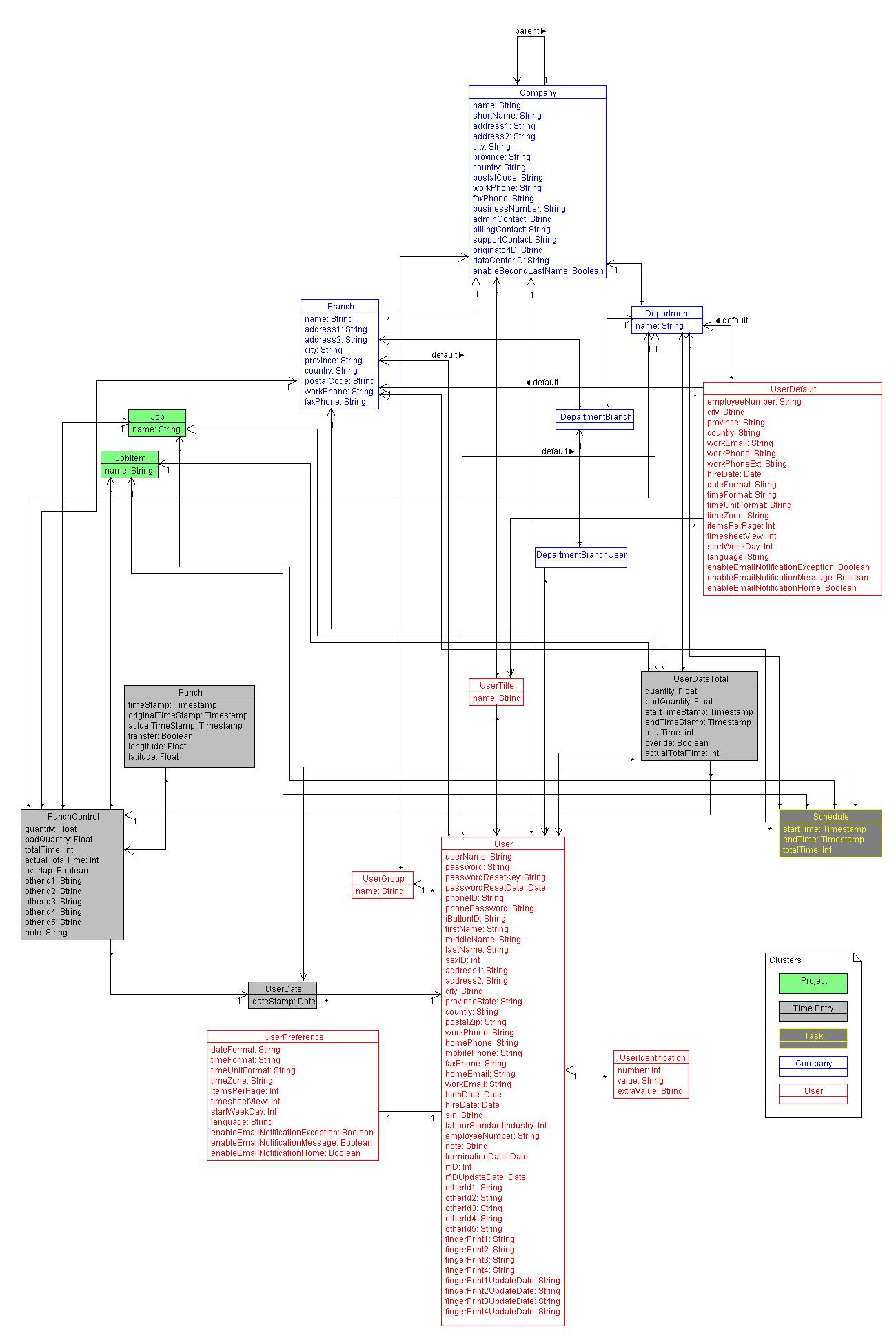

| stripped: UXF, JPG, PDF | |

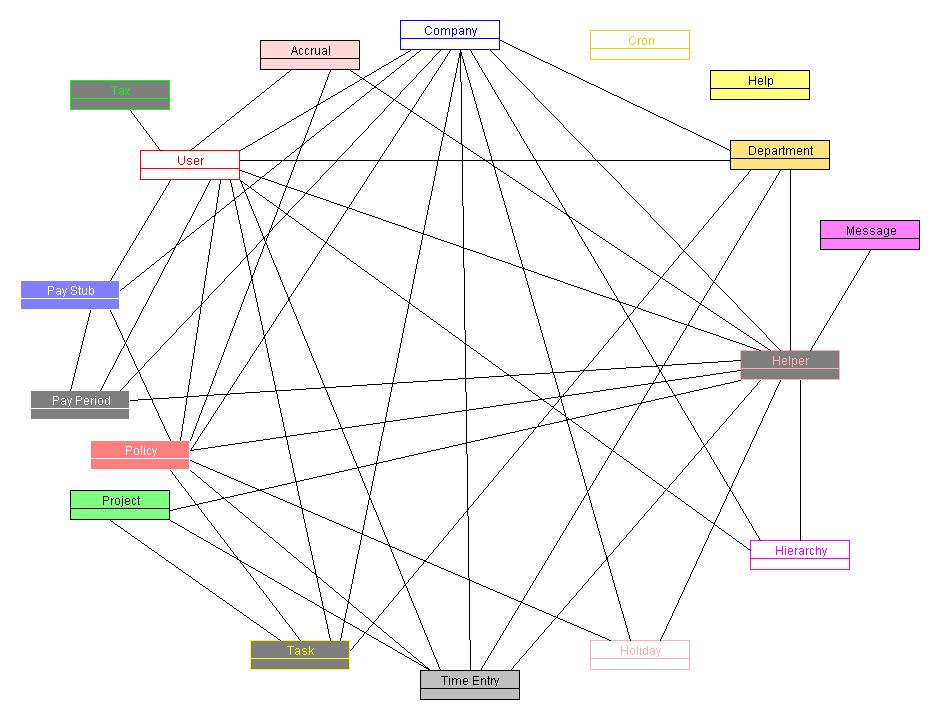

| clusters only: UXF, JPG, PDF | |
| Umple code | from UI: timeTrexFromUI.ump |
| from ERD: timeTrexFromERD.ump | |
| stripped: timeTrexFromERDStrippedClusters.ump | |
| Product Family | standard model: UXF, JPG, PDF |
| variability model: UXF, JPG, PDF | |
| Umple code: tam_product_family_klok_leia_anuko_timetrex.ump | |
| VML code: tam_product_family_klok_leia_anuko_timetrex.vml | |
| invocation: invoke_timetrex.vml | |
| Generated TAM system | Umple: invoked_timetrex.ump |
| Notes | TimeTrex.txt |
| Source code | TimeTrex_Standard_Edition_v2.2.21.zip |
| Guides | Windows Installation |
| Employee Preferences | |
| Pay Period Schedule | |

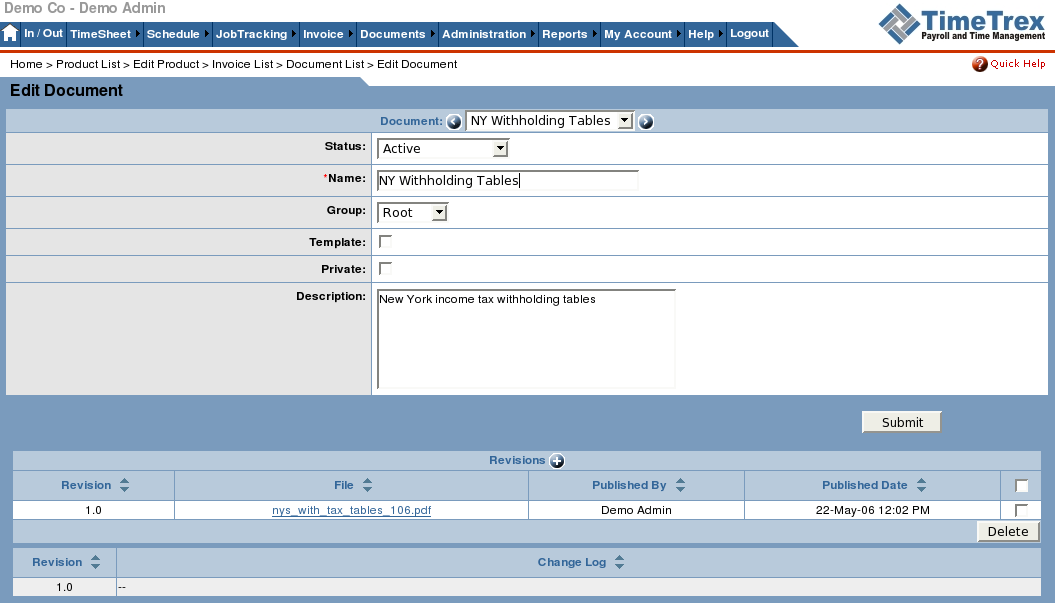

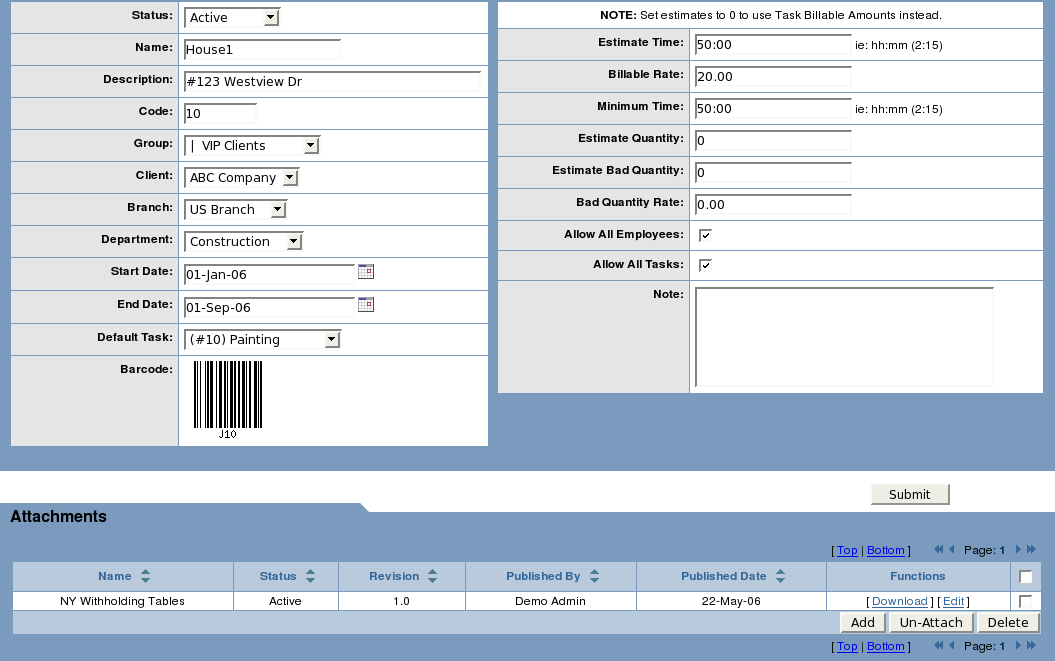

| Screenshots | Document 1, Document 2 |

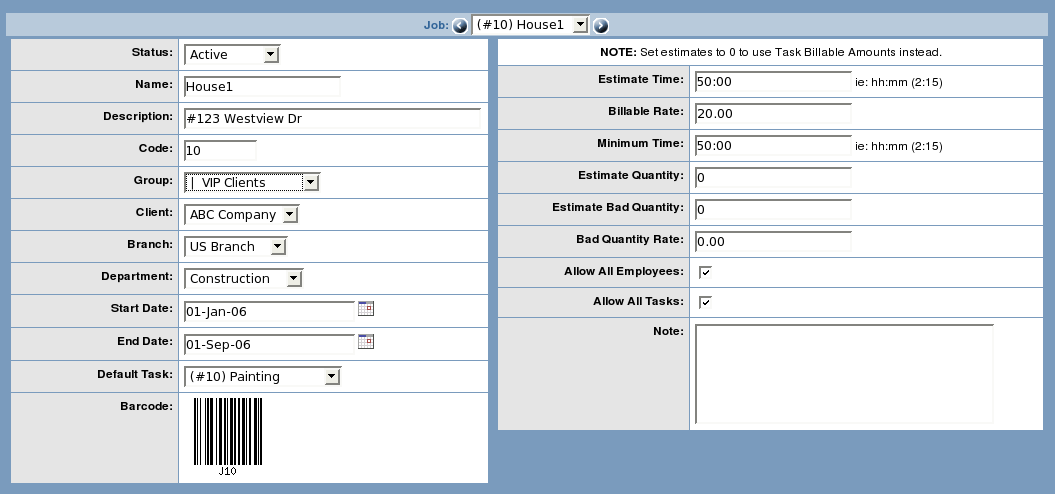

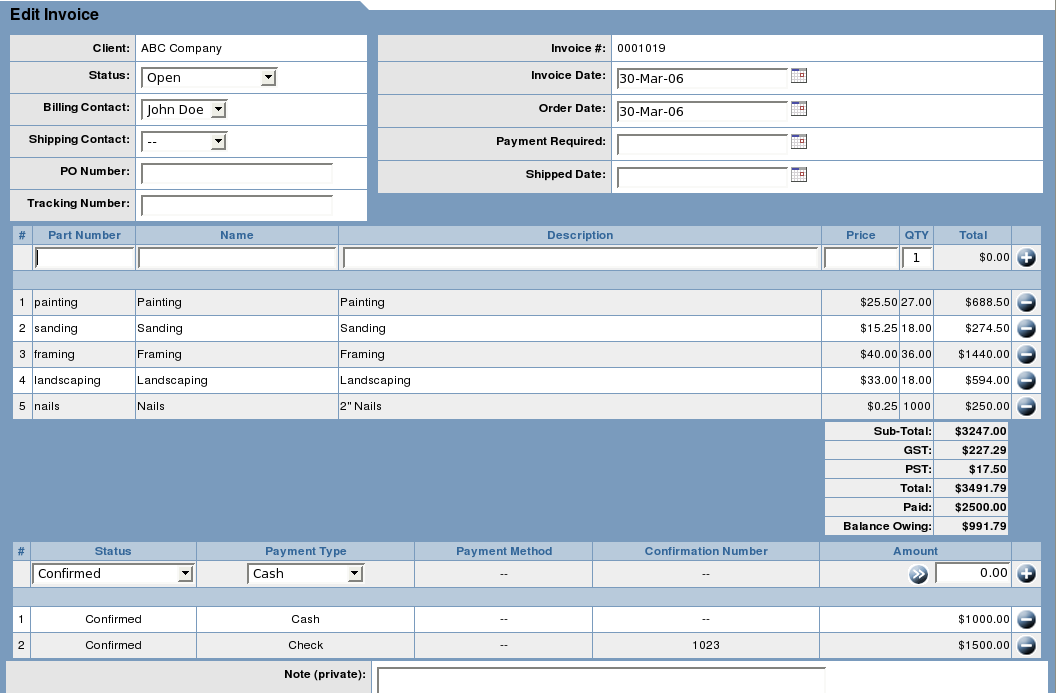

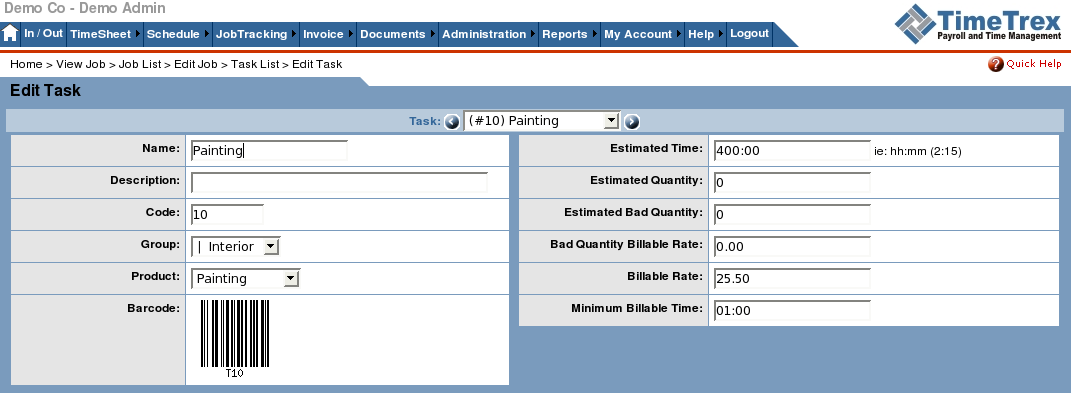

| Job 1, Job 2, Invoice 1 | |
| Umple | |
| Paper | Bridging the Code-Model Divide |
| Dusan's thesis | Exploring Textual Modeling using the Umple Language |
| Text models | Textual modeling notes from Dusan's thesis |
| Supplementary | |
| Time software overview | Time software overview |
